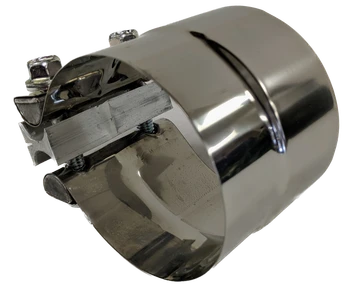

X004480, Donaldson Stainless Steel 3.5" Flat Band Clamp

• X004480
• Stainless Steel 3.5" Flat Band Clamp
• OD Pipe: 3.50 inches (89 mm)
• Style: Seal Clamp
• Nut and bolts fit both 9/16" and 14 mm wrenches
• Reduces noise and exhaust leaks
• Installs easily - no disconnecting or welding necessary
• 10 per box
• 1 Year Warranty

Flat Clamps

The SealClamp seals exhaust system connections between an O.D. (outer diameter) tube and I.D. (inner diameter) slotted tube or O.D. tube and flex tube.

3 Simple Installation Steps

• Position the SealClamp over the smallest tube. Larger end of the clamp must be
• on the overlapping tube or flex.
• Locate the step of the clamp to the overlapping tube at the joint.
• Using the groove as a visual guide, alternately tighten bolts until the
• groove is approximately half closed.
• Note: Do not exceed 70 ft. lbs. torque as clamp damage may occur.

Cross#'s: DN X004480, 9385, MA399C, 5931971, 8NG2803035, 351012, CMP00417, 76046734, 26S12, 2117539, 4324869, 1849425, 85821061, 0538885, 538885, 7700054426, EBC350, 9824380090009, A93610520, 5546, 549557C91, 3283436, 87357, KYX004480, NWK6116, 549557C91, PB4590, 50TS350, 00035006, F1350, 14189, 64106599, D2NKYX004480, 1031049, 9314C094115, 1925199, 6772734, M1925199, 66350, 1849425, 85821061, 50H0072, 9575X004480, DNX004480, 549557C91, 5826466, 8229364000, 5826466, 83671149, 730000211, HD3811, 9413553, 20350, 270827, 35293067, 470838C91, 508903C91, 549557C91, 583868C91, DCX004480, 934286, AT55914, AT65079, 9228310005, 1240118, 255119, PB4590, A7010771A, GD5826466, ACU5267, BACU5261, 6427162, 50H0072, 11ME229, 2191KYX004480, 3455970, 730000211, 2010771, A3964920040, 0538885, 538885, ACU5267, 270827, 89526K, 8112018, 7221516, LL847373, 19500260, 0538885, TFC350, ACU5267, BACU5261, 64106599, 1925199, 12680006, 2680006, 2682435, 242029, KYX004480, 35006, 04879001, 4879001, 7221516, 66350, 538885, 0695320100, 695320100, 1059205, DSC350, 9385, ACU5267, BACU5261, DC350, 1925199, KYX004480, 107619003, 1076190031, 4054049, 6772734, 27076560, 6772134, 6772734, V6772734, 351012, 00811685, 811685, 2680006, 35936, 76046734, 027076560, 234P6

VMRS: 043-003-048

NMFC Code 094110
HTS Code 7326908688
