Q-10009, Q-Straint QRT-360 Series Retractor Kit (Slide "N Click)

• Q-10009
• 4 QRT 360 Retractors with Slide 'N Click Fitting
• All-New Design from the Floor Up
• A More Secure Connection, Every Time
• Automatic Tightening Increases Safety
• Automatic Release Makes it Easy to Use
• Compatible with Most Vehicles and Chairs
• The first 4-point, heavy duty, fully automatic retractable tie-downs built to withstand the higher loads of the WC18 standard and be compatible with WC19 wheelchairs
• Made in the USA
• 5 years* limited warranty coverage *Only valid if product is registered with Q’STRAINT. Otherwise a 1 year limited warranty applies to all products

Mesh Wall Pouch:  Q5-8522

The first 4-point, heavy-duty, fully automatic retractable tie-downs designed, engineered and built to perform to the upcoming WC18 standards. More impressively, the new QRT-360 meets these increased standards years ahead of their effective date in 2015.

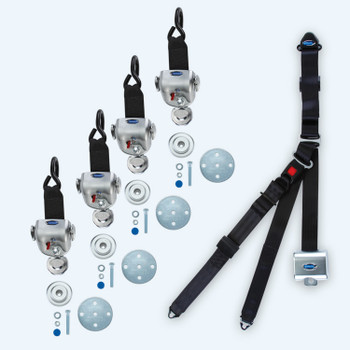

Includes:
(4) QRT-360 Retractors w/PLI (Q011012)
(1) Retractable Lap & Shoulder Belt Combo (Q8-6326-A1)
*L-Track not included

COMPATIBLE FLOOR ANCHORAGES: L-Track, Slide ‘N Click

CRASH TESTING: 30mph / 20G Crash Tested

QRT-360 MEETS OR EXCEEDS THE FOLLOWING STANDARDS AND REGULATIONS:

1. Fully ADA Compliant
2. SAE J2249
3. CSA Z605
4. ISO 10542
5. FMVSS 209, 302, 210, 222
6. CMVSS 209
7. PAS 2012
8. AS 2596
9. Regulation 107 (Bus & Coach)

QRT-360 Retractors are crash tested at 30mph (48kph), 20G, and fully comply with RESNA WC-4, Section 18, WC18, WC19, and ISO-10542-1
*Always demand up-to-date crash testing from a certified facility

As WC19 wheelchairs become increasingly popular, new higher standards have been recommended for wheelchair tie-downs to be fully compatible. The revised RESNA WC18 standard for Wheelchair Tie-downs and Occupant Restraint Systems (WTORS) was instituted in 2015 and is now in effect. The most significant implication of the revised standard is that wheelchair tiedowns must be stronger. WC19 covers the design and testing of wheelchairs for use in passenger transportation, and it brings about much needed passenger protection as well as some challenges for WTORS manufacturers. These crash tested wheelchairs will feature lap belts that are integrally mounted onto the wheelchair frame, as opposed to relying on traditional WTORS equipment where the passenger belts are mounted separately. During a collision, this new dynamic produces loads on the WTORS up to 60% higher.

All-New Design from the Floor Up
Stronger than any previous retractor, QRT-360 utilizes innovative energy management designs and material technologies to deliver the system’s full
strength for maximum load capacity. QRT-360 retractors achieve a surrogate wheelchair rating that meets the requirements of WC18 with an energy absorbing steel frame, new high strength 58mm webbing with fine-adjust self tensioning, and 25 high-strength teeth. A re-engineered Positive Locking Interface contributes to the system’s ability to secure extremely heavy loads.

A More Secure Connection, Every Time
With Q’STRAINT J-hook attachments, operators can achieve a secure attachment on virtually any wheelchair. An updated Positive Lock Indicator provides the operator with clear and certain visual confirmation that the retractor is locked and the vehicle is ready to go. Our patented design eliminates the guesswork when passenger safety is involved.

Automatic Tightening Increases Safety
Q’STRAINT’s industry-leading self-tensioning system automatically tightens the straps to eliminate any slack created by small wheelchair movements. The belts continue to tighten during low-g vehicle movements, which reduce the potential for dangerous excursions in the event of a collision.

Automatic Release Makes it Easy to Use

Securement is simplified by the compact and ergonomically designed knob. Thanks to Q’STRAINT auto-release, operators and attendants can pull and secure the wheelchair hook in one step without having to press a release button.

Compatible with Most Vehicles and Chairs
Like other Q’STRAINT systems, the QRT-360 is compatible with the widest variety of wheelchairs and scooters.

Did You Know?
The latest RESNA WC18 standards for wheelchair tie-downs and occupant restraint systems (WTORS) became effective in 2016; stating that tie-downs must be stronger, and capable of withstanding loads up to 60% higher.
QRT-360 WAS THE FIRST RETRACTOR TO MEET THESE INCREASED STANDARDS.

Vehicle Applications: School Bus, City Bus, Coach Bus, Rail, Community Transport, Minivan, WAV

Regional Availability: USA, Canada
