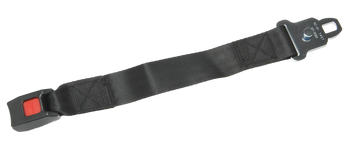

FE200637-14, Sure-Lok 13" Lap Belt Extension

• FE200637-14
• Sure-Lok Lap Belt Extension
• FE500 / FF600 Occupant Restraints, Integrated Lap Belts
• Wheelchair Equipment
• Only to be used with other Sure-Lok belts
• With new style connector
• Length: 13"
• Made in the USA
• Sure-Lok’s limited warranty coverage applies only to factory defects in materials and workmanship: 1 year limited warranty coverage

Old Part# FE200637

Cross#'s: FE200637-020, FE200637-20-05, FE20063714, SAT-FE20063714

1. Position the Wheelchair

With wheelchair and occupant facing forward, center the wheelchair between floor tracks or plates. Apply the wheelchair hand brakes and turn off power on motorized wheelchairs.

2. Attach the Front Tie-Downs

The front tie-downs need approximately a 45° angle from the floor. Install the track fitting into a floor track or plate opening that is 3” to 8” outside the front wheel. Pull on fitting to ensure it is properly locked in the track and keeper is facing away from the wheelchair. Loop the other end of the tie-down around a solid structural frame member of the wheelchair as close to the corner junction of the seat cushion as possible and connect hook to the D-ring (for S-hook tie-downs, see step 4). Pull loose end of tie-down through the buckle, until tight. Repeat with other front tie-down. Pull on all four tie-down assemblies to ensure proper attachment.

3. Attach the Rear Tie-Downs

The rear tie-downs need approximately a 45° angle from the floor. Install the track fitting into a floor track or plate opening that is just to the inside of the rear wheel. Pull on fitting to ensure it is properly engaged in the track and keeper is locked in position and facing away from the wheelchair. Loop
other end of tie-down around a solid structural frame member of the wheelchair as close to the corner junction of the wheelchair back and seat as possible, and connect hook to the D-ring (for S-hook tie-downs, see step 4). Unlock buckle and rotate handle to open position, pull loose end of tie-down to remove slack, rotate handle to closed locked position to tension the tie-down. Repeat with rear tie down.

4. S-hooks

Place the S-hooks around a solid structural frame member of the wheelchair as close to the corner junction of the seat cushion as possible and apply tension to the tie-down. Pull on all four tie-downs to ensure proper attachment.

CAUTION:

Do not attach tie-downs to the wheels or any detachable portion of the wheelchair. Tie-down must have a clear, straight path from floor to where it attaches to the wheelchair. Do not allow tie-downs to conform or bend around any object, i.e. the wheels or foot rests. Keep tie-downs away from
sharp edges or corners.

Sure-Lok Titan Integrated Combination wheelchair Belt with triangular fittings to attach lap belt to stud on rear wheelchair tie-down re tractor assemblies. A Velcro strap is provided to keep belt against the vehicle sidewall when not in use.
