Southco
C2-32-25, Southco Compression Lever Latch, Key Locking
- SKU:
- C2-32-25
- Shipping:
- Calculated at Checkout
Description
- C2-32-25
- Compression Latch, Lever Latch, Key locking
- Material: Zinc Alloy
- Finish: Powder Coat
- Color/Appearance: Black
- Access Restriction: Key Locking
- Head Style: Key Locking
- Series: Standard
- Maximum static load: 200 N (45 lbf)
- Min. Outer Panel Thickness (mm): 0.00
- Max Outer Panel Thickness (mm): 5.00
- Grip - Minimum (mm): 1.00
- Grip - Maximum (mm): 24.00
- Profile: Flush
- Class: C2 - Lever Latches
- 1-5 mm Panel
- 1-24mm Grip
- Not Sealed
- ROSH Compliant
- Low Profile when latched
- Easy Grip adjustment
- Push button actuation
- Optional sealing
Easy to install, and easy to operate, these popular low-profile lever latches present a sleek look for highly visible installations. A discretely mounted trigger mechanism (flush or slightly raised) is provided to release the built-in handle for use.
Installation Notes:
For door thickness greater than 5 (.20) calculate screw length using the following formula: Door thickness + 12 (.47)
Accessories (Special Order):
Rubber Bumper: Part# C2-25-301-82 (Reduces min. and max. grip by 1.6 (0.06)
Videos Hide Videos Show Videos
1 Review
-
Incorrect part description
This part is supposed to be a keyed locking latch as shown in the images. They arrived and are not locking at all.
Related Products
C2-32-35, Southco Black Compression / Lever Door Latch
Southco
MSRP:
$16.63
Now:
$16.08
Was:
$16.63
C2-32-35
Compression Latch, Lever Latch, No Restriction, Flush Trigger, 1-5mm Panel, 1-24mm Grip, Not Sealed, Zinc Alloy, Powder Coat, Black
Material: Zinc Alloy
Finish: Powder Coat
Group:...

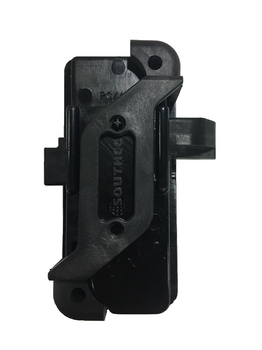

M1-2F-3-25, Southco Thomas C2 Black Push to Close Door Latch
Southco
MSRP:
$36.79
Now:
$35.56
Was:
$36.79
M1-2F-3-25
Commonly Used on C2 Buses
Material: Plastic
Color/Appearance: Black
Access Restriction: Key Locking
Grip Range: 0.25"
Panel Thickness Range: 0.05"-0.13"
Min. Outer Panel Thickness...

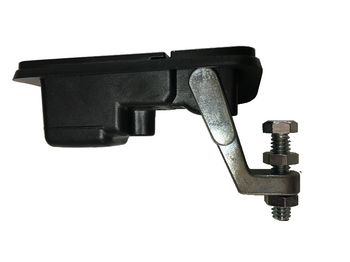

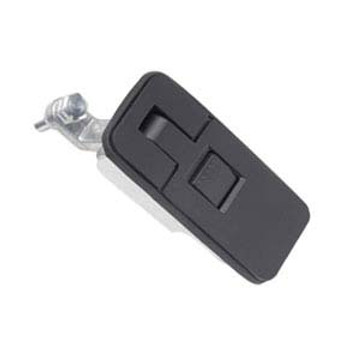

C5-M-11-15, Southco Battery Door Latch (Thomas/C2)
