110CS0001, Opti-Luxx LED FA Series 4" Stop & Tail Light with Grommet

• 110CS0001
• Replaced the ECVR42STT-FA
• 4" Round Stop / Tail / Turn
• Opti-Luxx FA Series 4" Stop & Tail Light with Grommet
• Low Diode - Economy Version
• Includes black snap ring
• Leading Stop/Tail/Turn Light System
• Sonic Welded, Waterproof Construction
• Adhered Neoprene Gasket
• Advanced Optical Technology exceeds all SAE and FMVSS requirements
• Specially engineered lens boosts light output and brightness
• Lens has UV Inhibitor that Prevents Sun Fade
• Includes 7" Length Wire

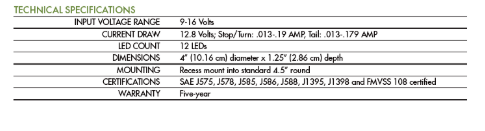

• Input Voltage Range: 9-16 Volts
• Current Draw: @12.8 Volts, Stop/Turn: 0.013-19 amps, Tail: 0.013-.179 amps
• LEDs: 12
• Dimensions: 4" (10.16 cm) Diameter (2.86 cm) x 1.25" Depth
• Mounting: Recess Mount into Standard 4.5" Round
• Certifications: SAE J575, J578, J585, J586, J588, J1395, J1398 & FMVSS 108 certified
• Warranty: 5 years

This signal light is easy to install using a common 4 inch round body cutout with Amp Sure Seal Connectors to ensure a tight seal.  Using only LED technology provides you high quality lighting. Our advanced internal optics technology disperses a wider angle of light maximizing LED power and a UV stabilized lens prevents fading. These are a great fit for DOT Construction Vehicles, Commercial Vehicle Trailers, Transit Buses, Shuttle Buses & School Bus applications.

Opti-Luxx Inc. is an industry leader with years of expertise in LED lighting and control systems for commercial vehicles. We're focused on bringing innovative, safety-enhancing, and long-lasting LED products to the school bus market.  Our reputation is built on delivering cost-competitive products with hassle-free warranties, short lead times, and world-class customer service.

Cross#'s: 42STT, 10020437, BB10020437, 10039157, BB10039157, 01-ZSS-42R, ECVR42STTFA, WRN-ECVR42STTFA, NBPSOECVR42SST-FA, ECVR42STT-FA, 110CS0001
