100BC0004, Opti-Luxx Low Profile Yellow LED Strobe Beacon

• 100BC0004

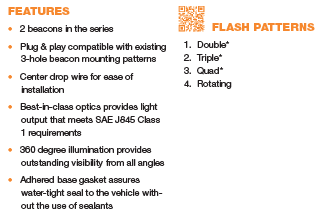

• Plug and play compatible with existing 3-hole beacon mounting patterns
• Center drop wire for ease of installation
• Best in class optics provides light output that meets SAE J845 Class 1 requirements
• 360 degree illumination provides outstanding visibility from all angles
• Adhered base gasket assures a water tight seal to the vehicle without the use of sealants
• Flash Patterns: Double, Triple, Quad, Rotating
• Input voltage range: 10-30 Volts
• Current Draw: 1.35/1.85A (min/max)
• LED Count: 12
• Operating Temperature: -40 Celsius to +65 Celsius
• Dimensions: Height - 3.19" (81mm), Diameter - 6.7" (170.9mm)
• Mounting: Surface Mount, 3 Holes on 5.99" (152.1mm) circle dia. Permanent (screw) Adhered EVA gasket
• Certifications: SAE J845/J2139 Class 1 FMVSS/CMVSS 108 IP Code IP67
• Warranty: 5 years

 Cross Number's

• BB10071826
• 10071826
• 3891418C2
• 100BC-0004-A
• 100BC0004

LED Strobe Lights

Sound Off Strobes & Accessories

The Charlotte Class 1 LED beacon produces a superior warning signal that promotes safety in all work environments.  A perfect solution for all commercial vehicles that are looking for a traditional style strobe style beacon with the latest LED technology.  This high-profile model in the series is available in both amber and white and comes with a standard adhered base gasket that assures a water-tight seal to your vehicle.  A venter drop wire and a traditional 3-hole screw mount make installation quick and easy.  Each Charlotte beacon has 4 flash patterns to choose from.

Replaced Part#: USB3107HCC
