100BC0002, Opti-Luxx High Profile Yellow LED Strobe Beacon

• 100BC0002

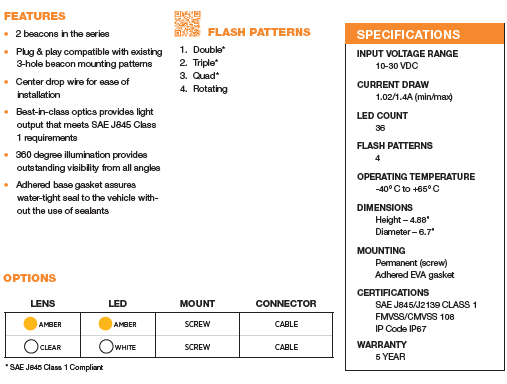

• Plug and play compatible with existing 3-hole beacon mounting patterns
• Center drop wire for ease of installation
• Best in class optics provides light output that meets SAE J845 Class 1 requirements
• 360 degree illumination provides outstanding visibility from all angles
• Adhered base gasket assures a water tight seal to the vehicle without the use of sealants
• Flash Patterns: Double, Triple, Quad, Rotating
• Input voltage range: 10-30 Volts
• Current Draw: 1.02/1.4A (min/max)
• LED Count: 36
• Operating Temperature: -40 Celsius to +65 Celsius
• Dimensions: 4.88" High (124 mm) x 6.7" (170.99 mm) Diameter
• Mounting: Surface Mount, 3 Holes on 5.99" (152.1mm) Permanent (screw) Adhered EVA gasket
• Certifications: SAE J845/J2139 Class 1 FMVSS/CMVSS 108 IP Code IP67
• Warranty: 5 years

Wiring Directions:   There are (4) different flash patterns available  (double, triple, quadruple and rotating)  In order to install the strobe with the desired pattern. First power must be run to the strobe, then briefly touch the brown wire to the power source.  This will allow you to toggle through the 4 available flash patterns.

LED Strobe Lights
Sound Off Strobes & Accessories

The Charlotte Class 1 LED beacon produces a superior warning signal that promotes safety in all work environments.  A perfect solution for all commercial vehicles that are looking for a traditional style strobe style beacon with the latest LED technology.  This high-profile model in the series is available in both amber and white and comes with a standard adhered base gasket that assures a water-tight seal to your vehicle.  A venter drop wire and a traditional 3-hole screw mount make installation quick and easy.  Each Charlotte beacon has 4 flash patterns to choose from.

        Cross Number's

 NBPSOELB43BCH0WC,100BC0002-A,08-SL-450LED
